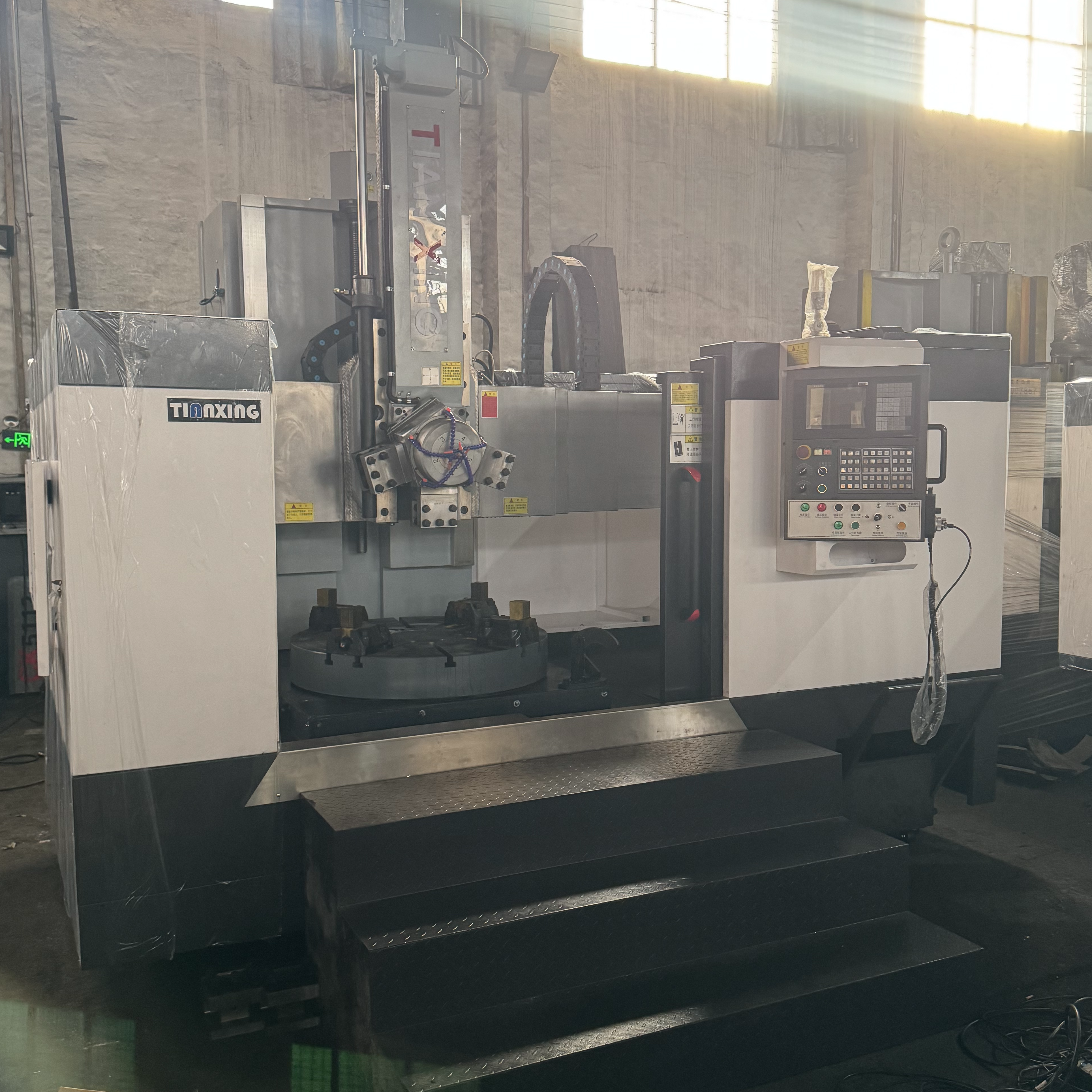

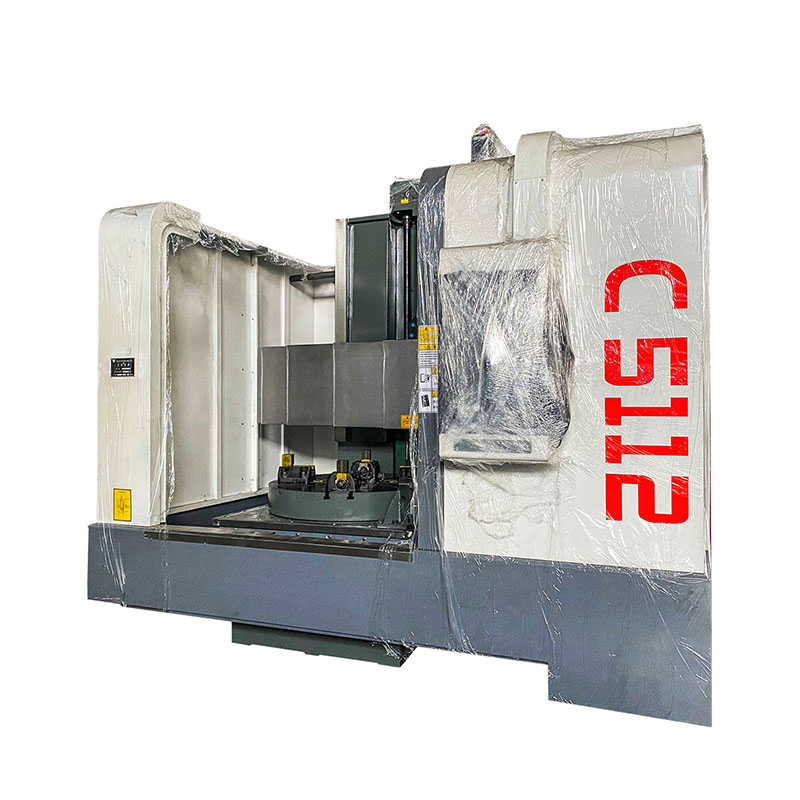

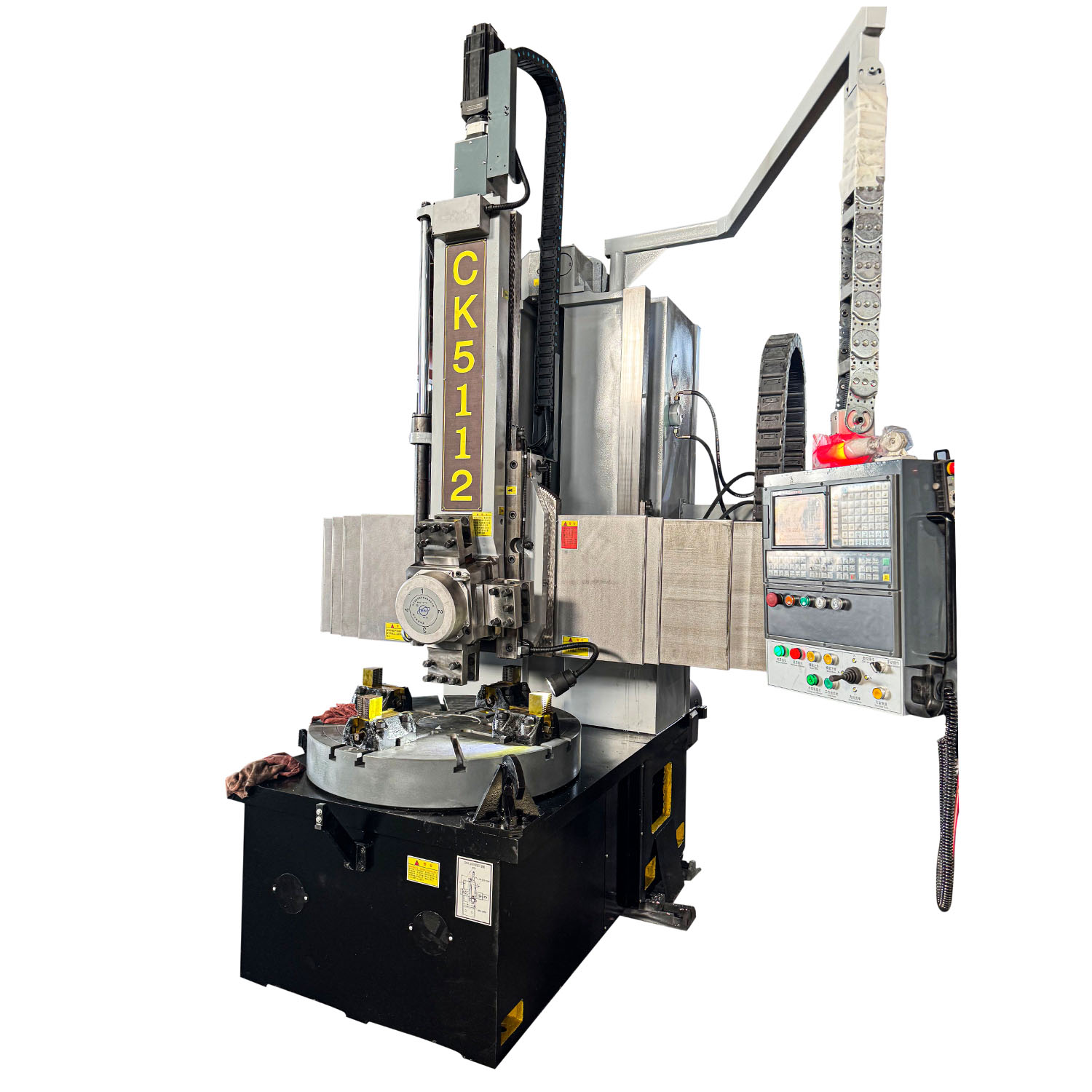

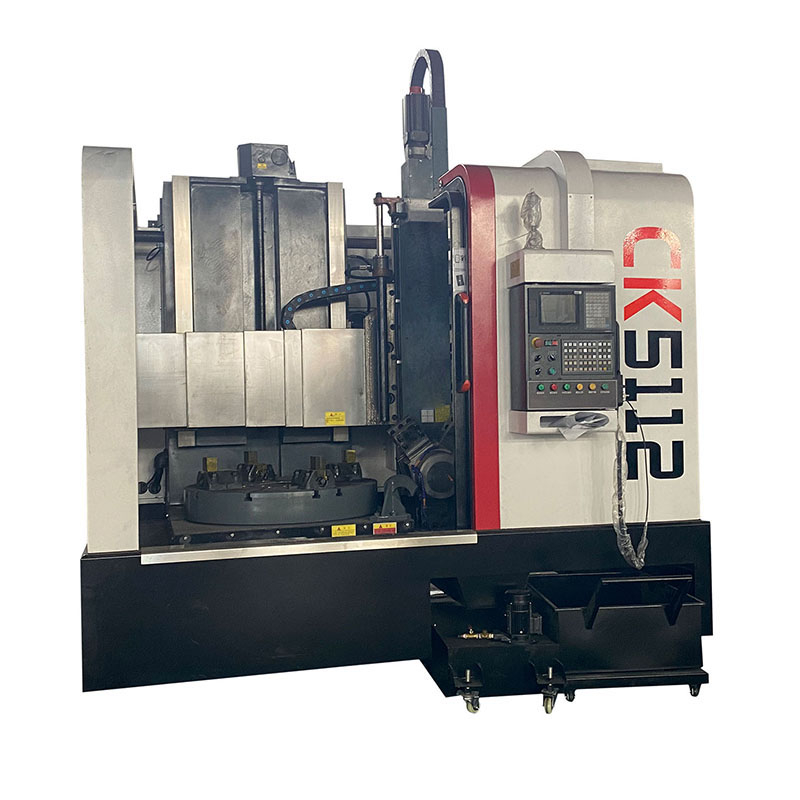

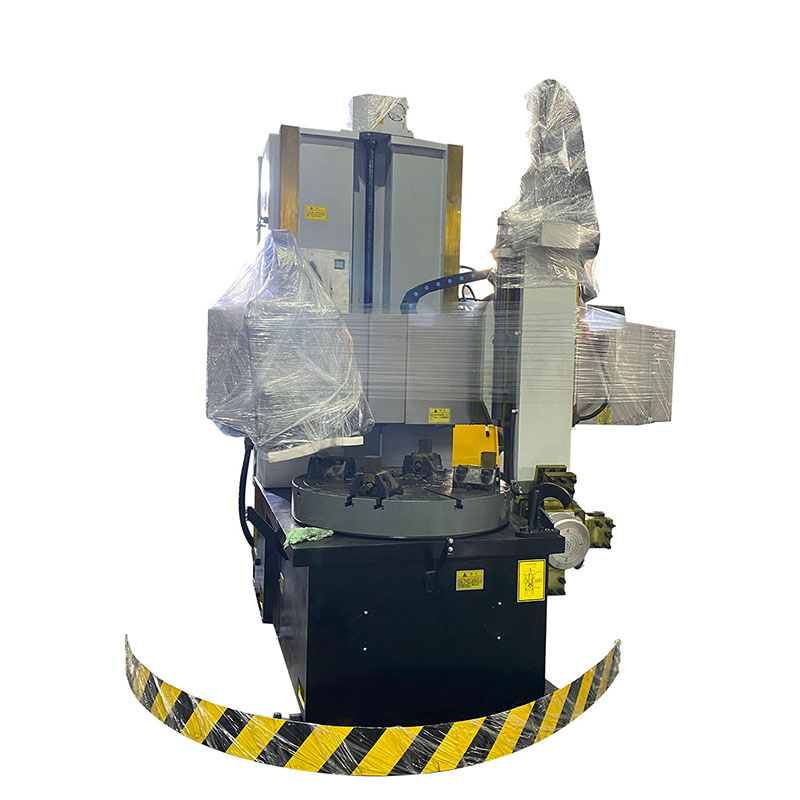

CK5112 CNC Vertical Lathe
SONGQUAN
84581100

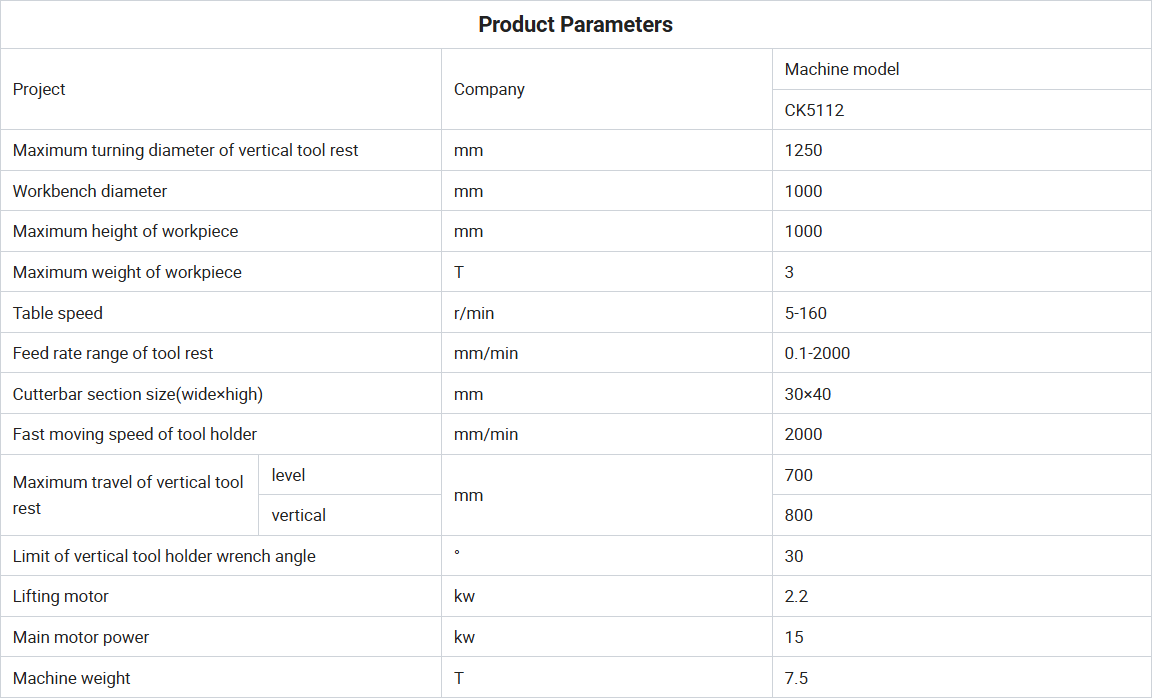

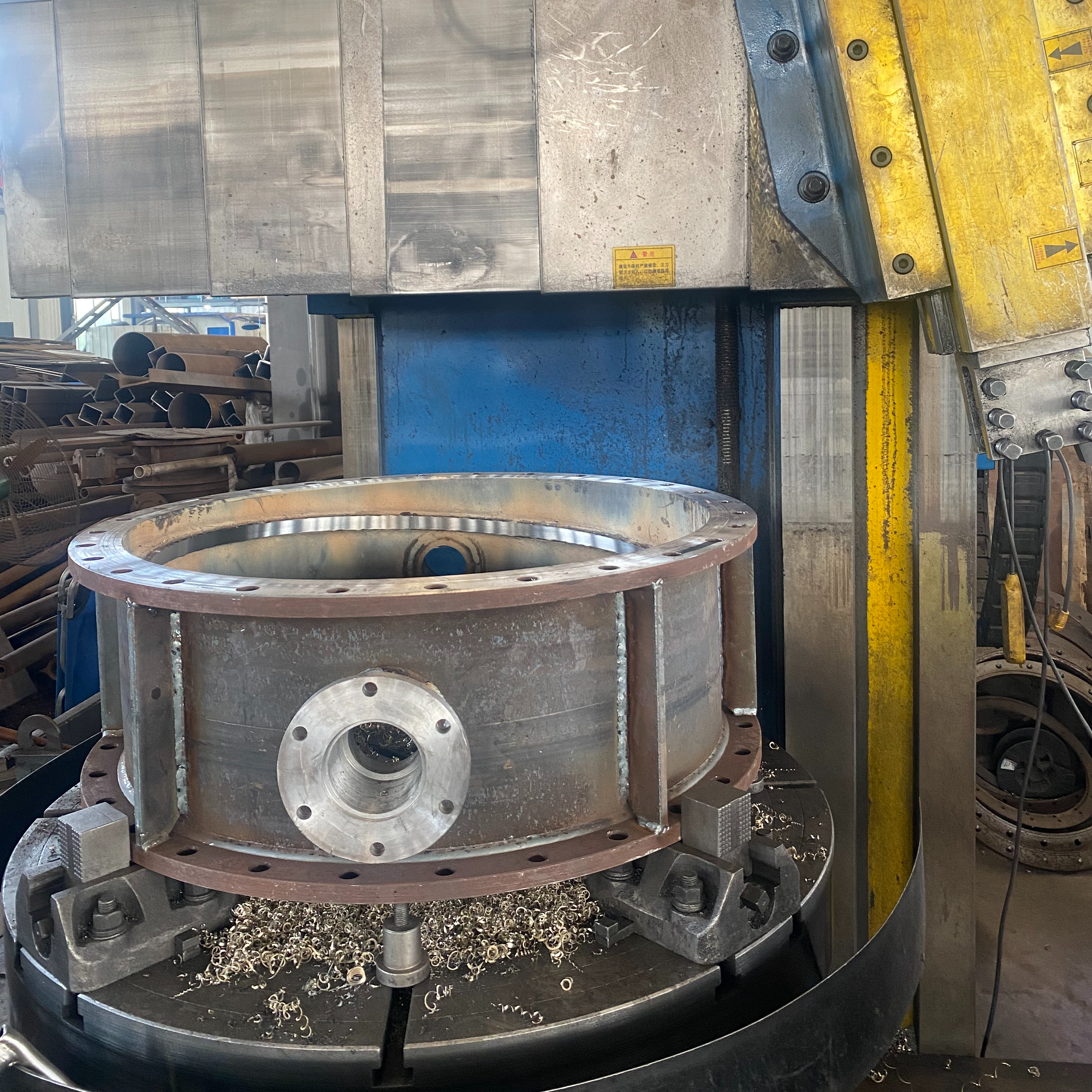

The CK5112 CNC Vertical Lathe is engineered exclusively for precision machining of medium and heavy-duty workpieces, ideal for large rotating components including flanges and wheel hubs across construction machinery, mining equipment and related heavy industries. It features a 1250mm maximum turning diameter on the vertical tool rest and a 1000mm-diameter workbench, effortlessly accommodating workpieces up to 1000mm in diameter, 1000mm in height and 3 tons in weight—with an upgraded 5-ton load capacity for heavier machining demands.
Powered by a 22kW main motor and a 2.2kW lifting motor, the lathe delivers robust, consistent power output for non-stop stable operation. Its worktable speed is steplessly adjustable from 6 to 160r/min, paired with a vertical tool rest feed rate of 0.1–2000mm/min and a 2500mm/min rapid traverse speed for the tool holder. This dynamic speed configuration ensures efficient completion of both rough and finish cutting processes, adapting seamlessly to diverse precision requirements for different workpiece materials.

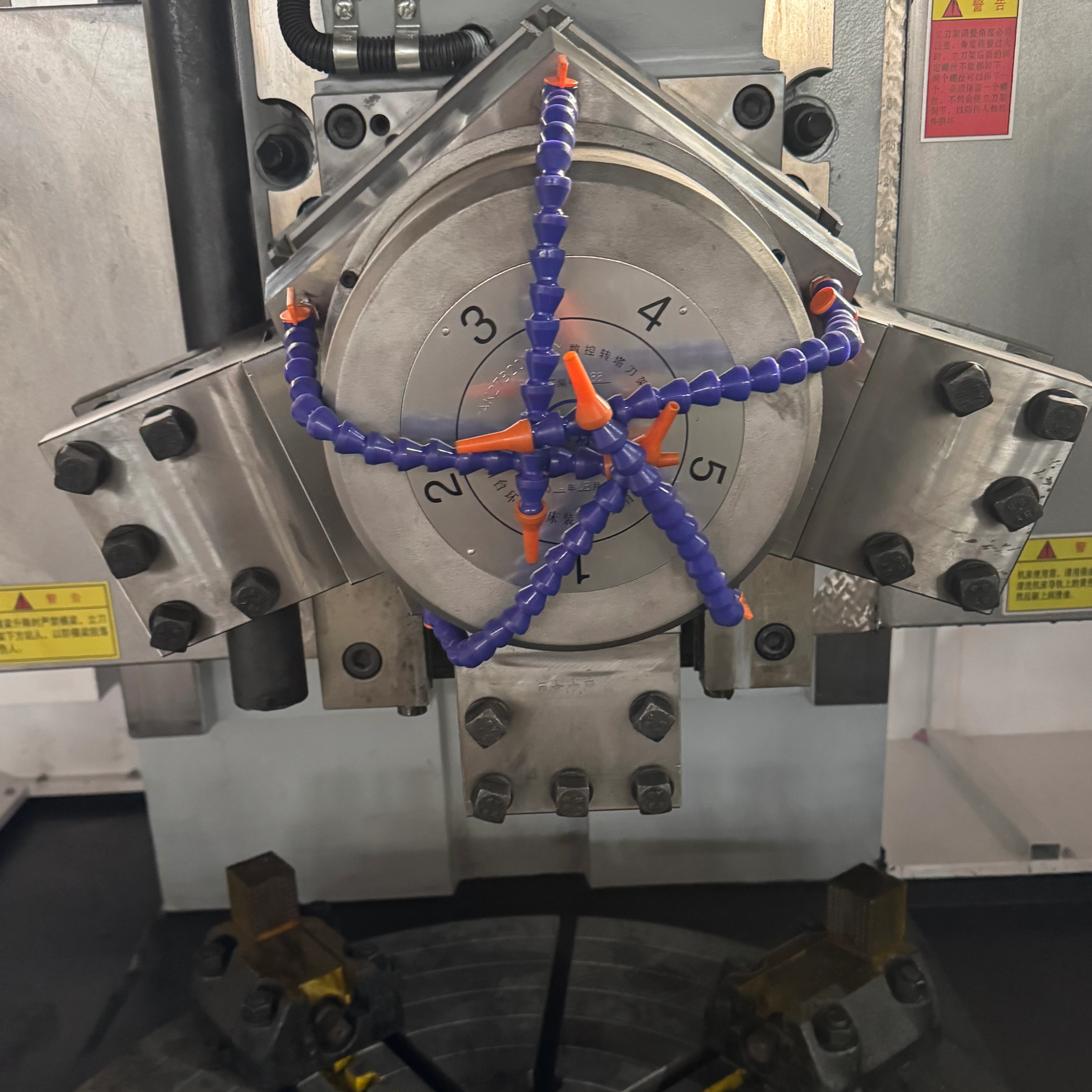

The CK5112 is built with professional, industry-tailored components for enhanced versatility and operational safety: it adopts a 30×40mm cutterbar compatible with a full range of standard cutting tools, and the vertical tool holder features a 30° wrench angle limit to prevent misoperation and ensure workplace safety. Boasting a 700mm horizontal travel and 800mm vertical travel for the vertical tool rest, the lathe offers an extensive machining range, meeting multi-directional cutting needs for complex, irregular heavy-duty workpieces.
With an overall weight of 7.5 tons, the machine achieves exceptional structural rigidity that effectively dampens machining vibration and maintains tight machining accuracy even under heavy-load continuous operation. Combined with the stable support of the 1000mm large-diameter workbench, this rigidity ensures consistent precision for integrated rough and finish machining—eliminating the need for secondary processing and reducing production downtime.
From core parameter design to real-world machining performance, the CK5112 strikes a perfect balance between high efficiency and precision machining: its 5-ton maximum workpiece load capacity caters to heavy-duty machining scenarios; the wide 6–160r/min speed range adapts to cutting of various metal materials; and the 2500mm/min rapid traverse speed drastically cuts non-cutting auxiliary time, boosting overall production efficiency for your manufacturing line.
