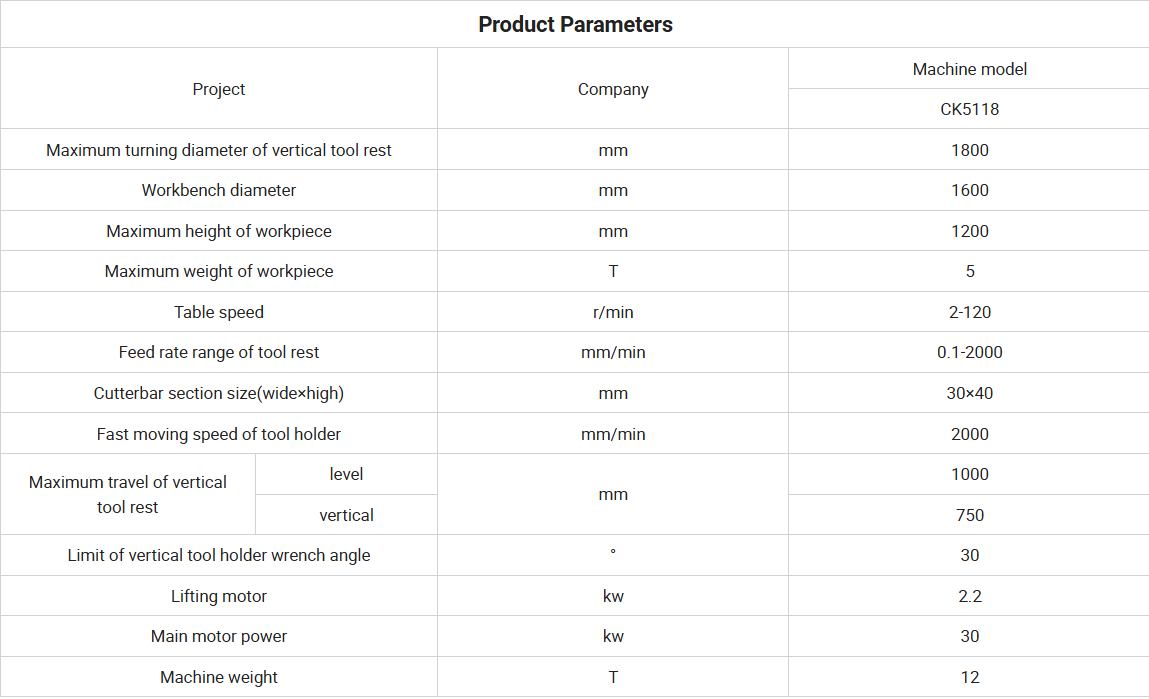

The CK5118 vertical lathe is engineered for large-scale workpiece machining, boasting a 1800mm maximum turning diameter of the vertical tool rest and 1600mm workbench diameter. It can handle workpieces up to 1200mm in height and 5T in weight, making it ideal for precision processing of large rotating parts like heavy-duty flanges and wind power components.

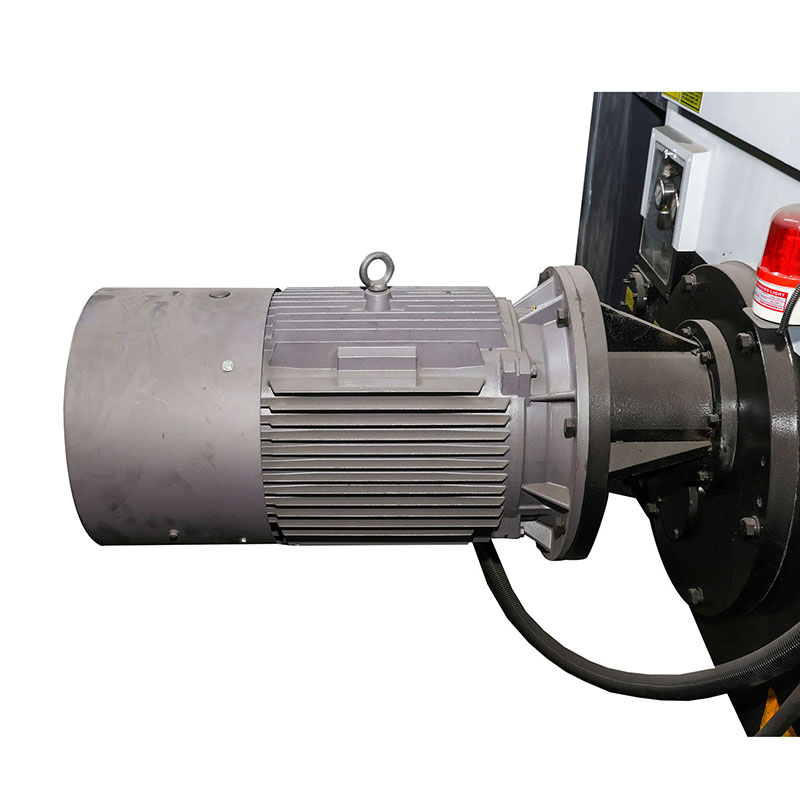

Powered by a 30kW main motor and 2.2kW lifting motor, the CK5118 delivers strong and stable performance. Its table speed adjusts flexibly between 2-120r/min, paired with a 0.1-2000mm/min tool rest feed range and 2000mm/min tool holder fast moving speed, adapting to diverse cutting needs for different materials.

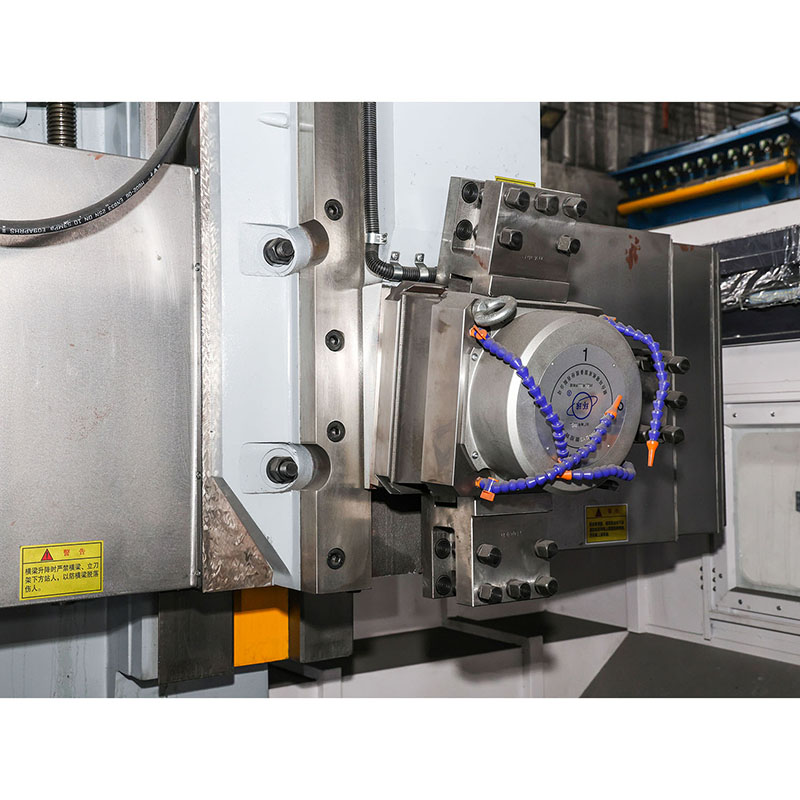

The CK5118 features practical and safe configurations: a 30×40mm cutterbar compatible with multiple cutting tools, and a 30° limit for the vertical tool holder wrench angle to ensure operational safety. Its vertical tool rest offers 1000mm horizontal travel and 750mm vertical travel, covering multi-directional cutting requirements for complex large workpieces.
With a machine weight of 12T, the CK5118 has excellent structural rigidity, which effectively suppresses machining vibration and maintains high precision even under heavy-load operations. Its 5T maximum workpiece weight capacity suits heavy-duty machining scenarios in industries like construction machinery and power equipment.

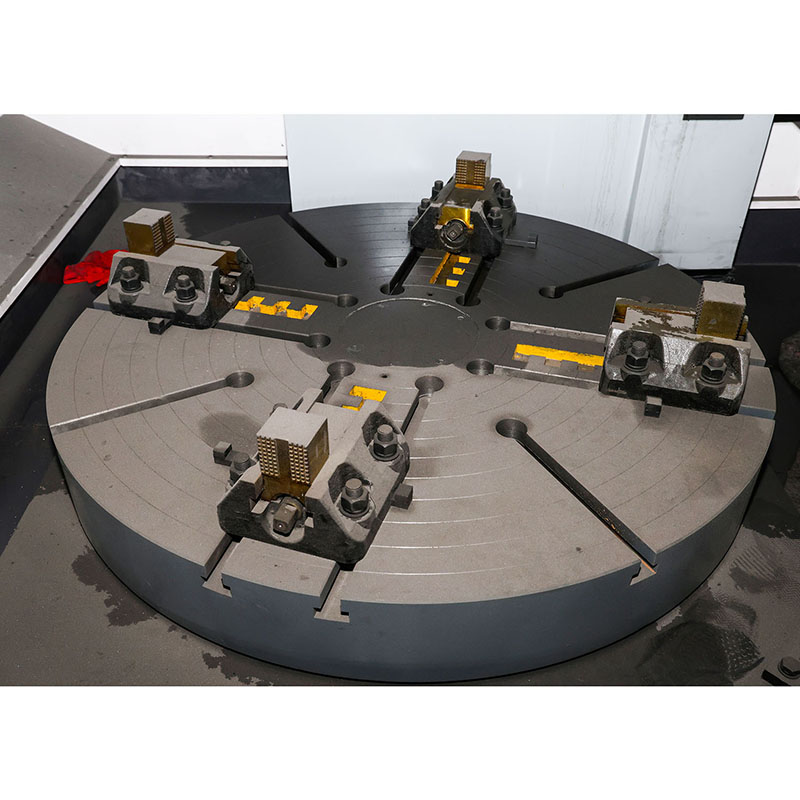

Combining versatility and efficiency, the CK5118 vertical lathe stands out with its wide parameter ranges—from table speed to feed rate—that fit various machining tasks. The 1200mm workbench provides stable support for large workpieces, while the tool holder's fast moving speed reduces auxiliary time, boosting overall production efficiency.
