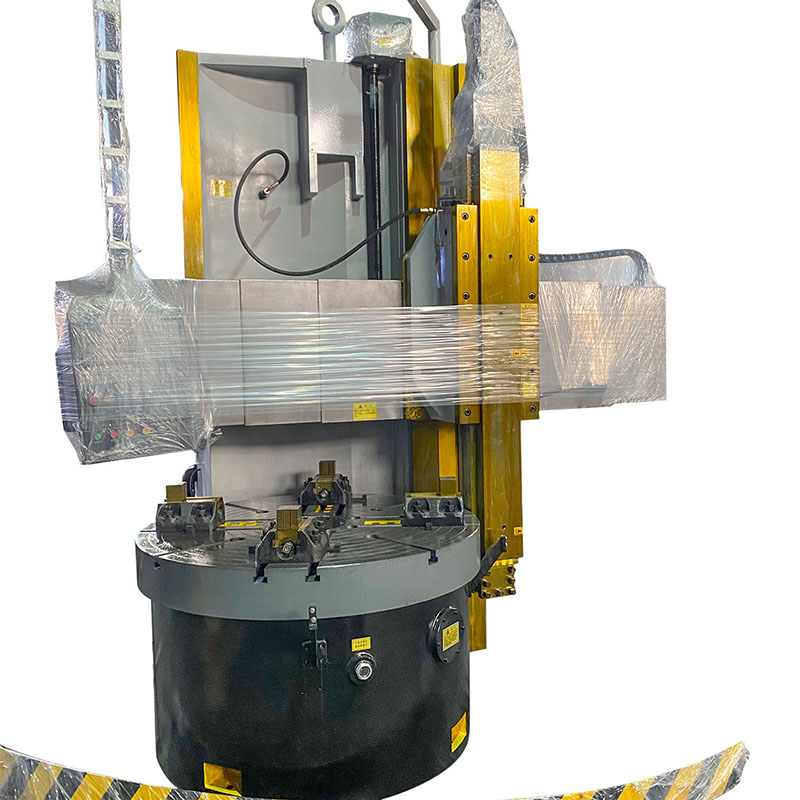

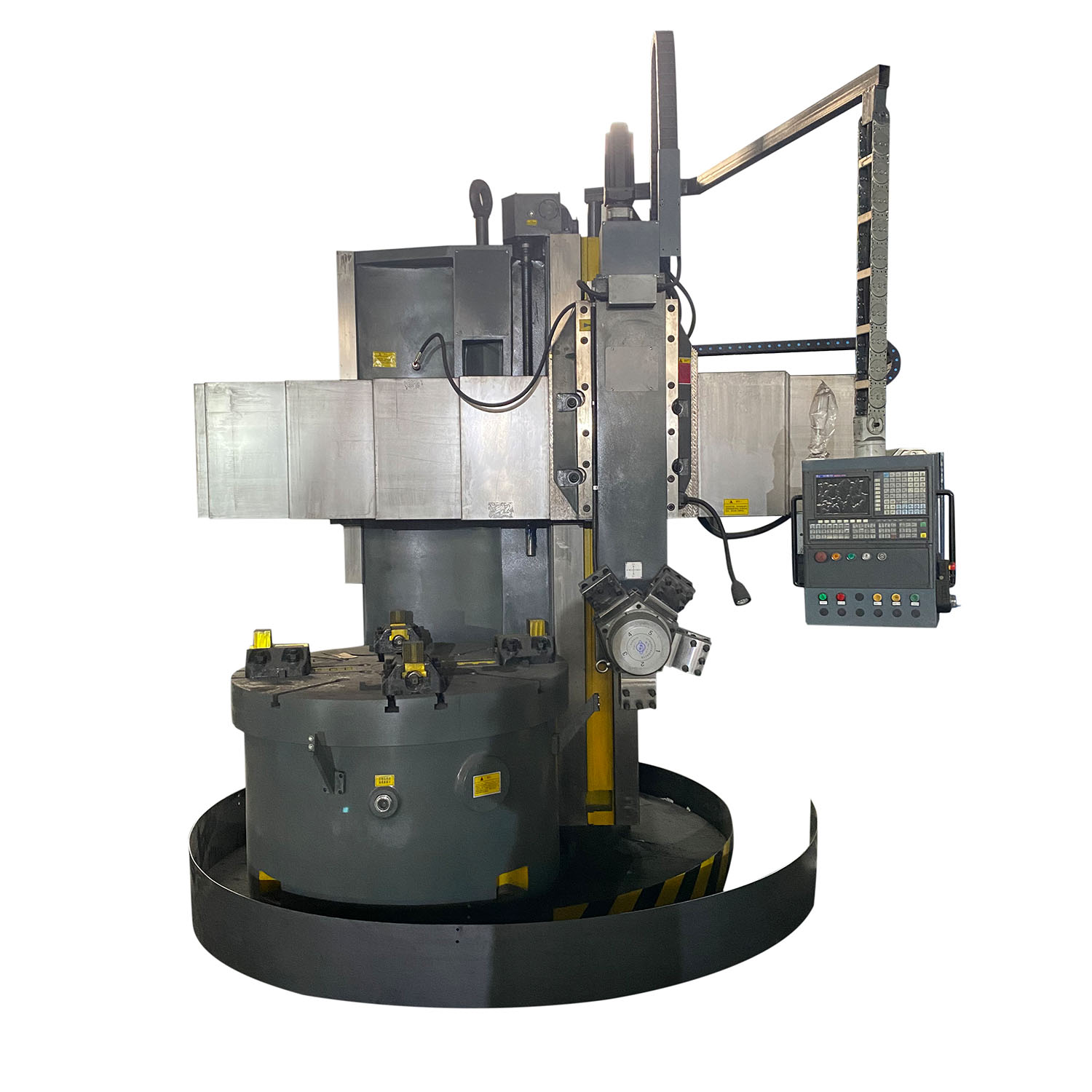

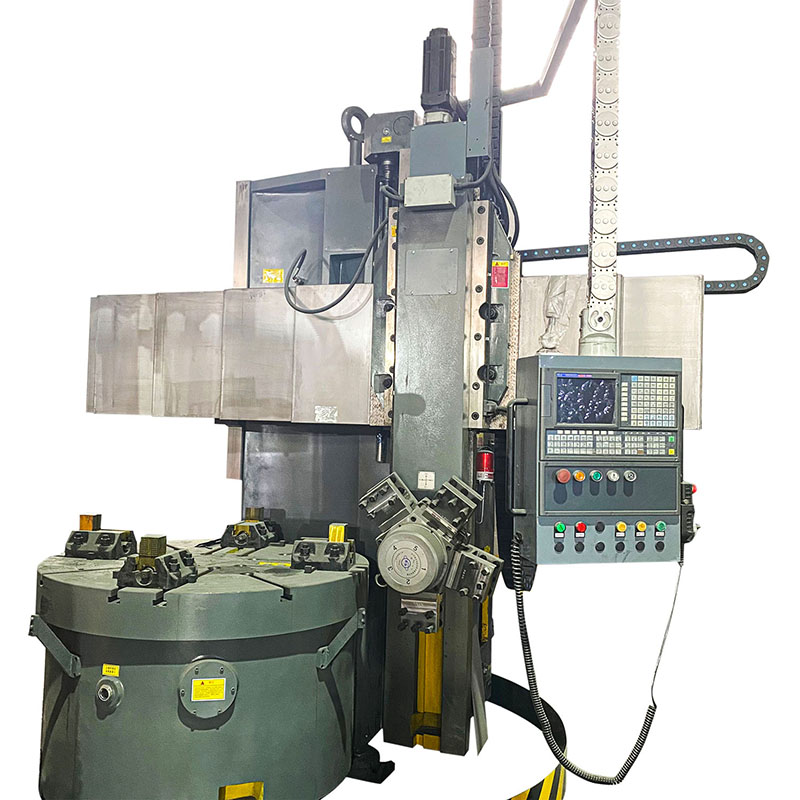

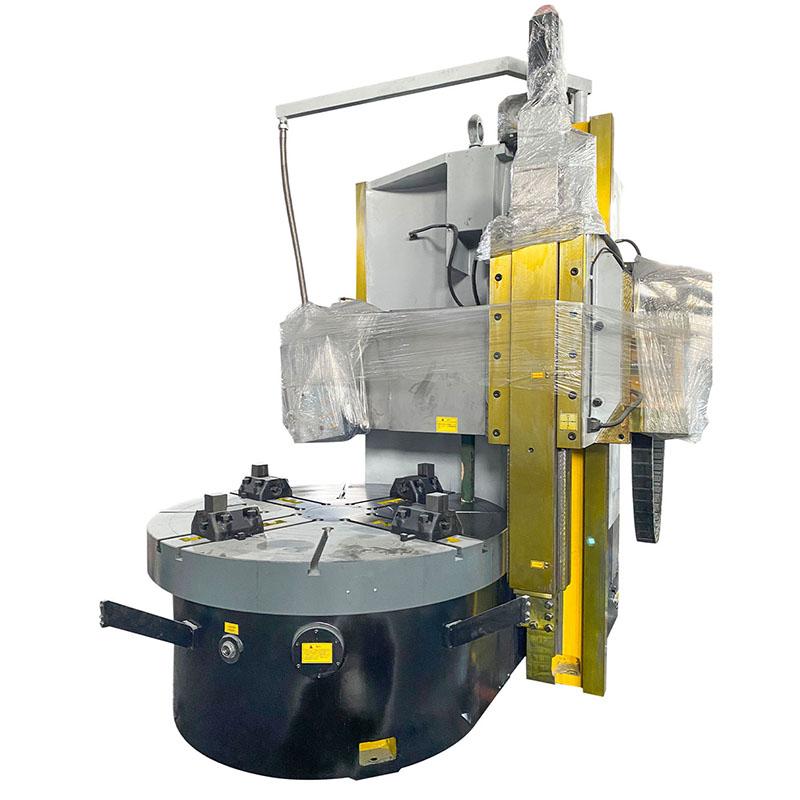

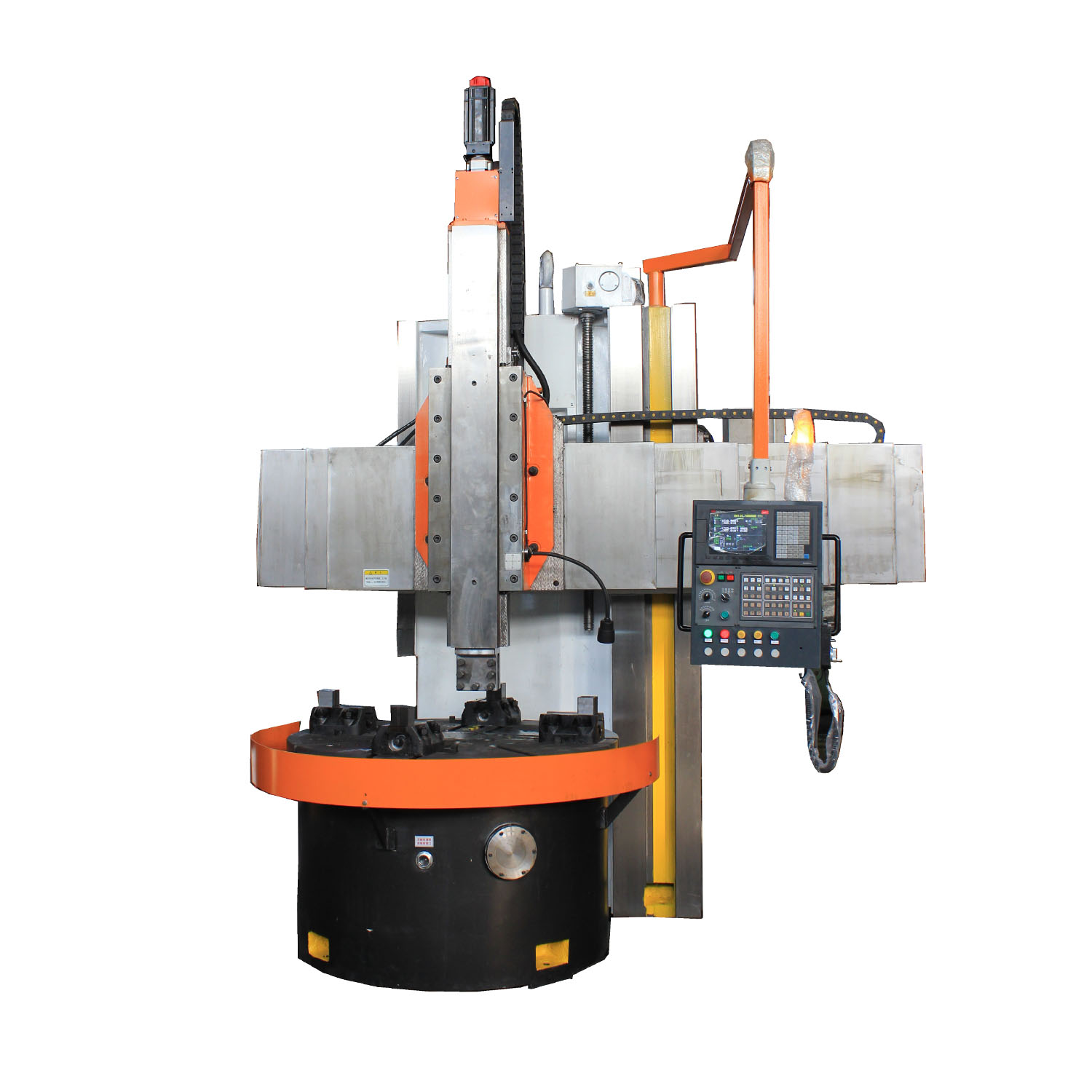

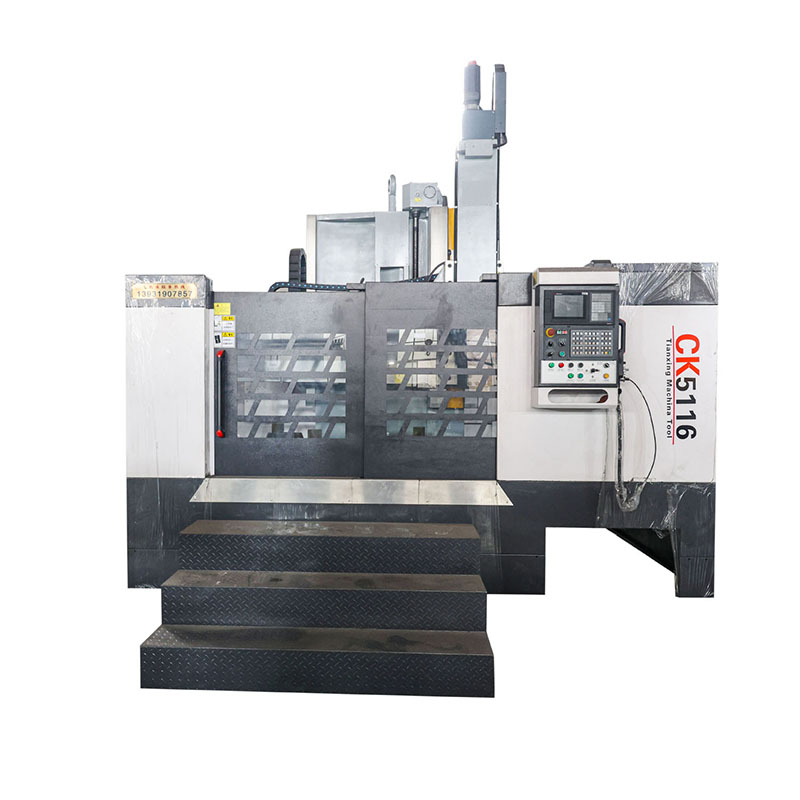

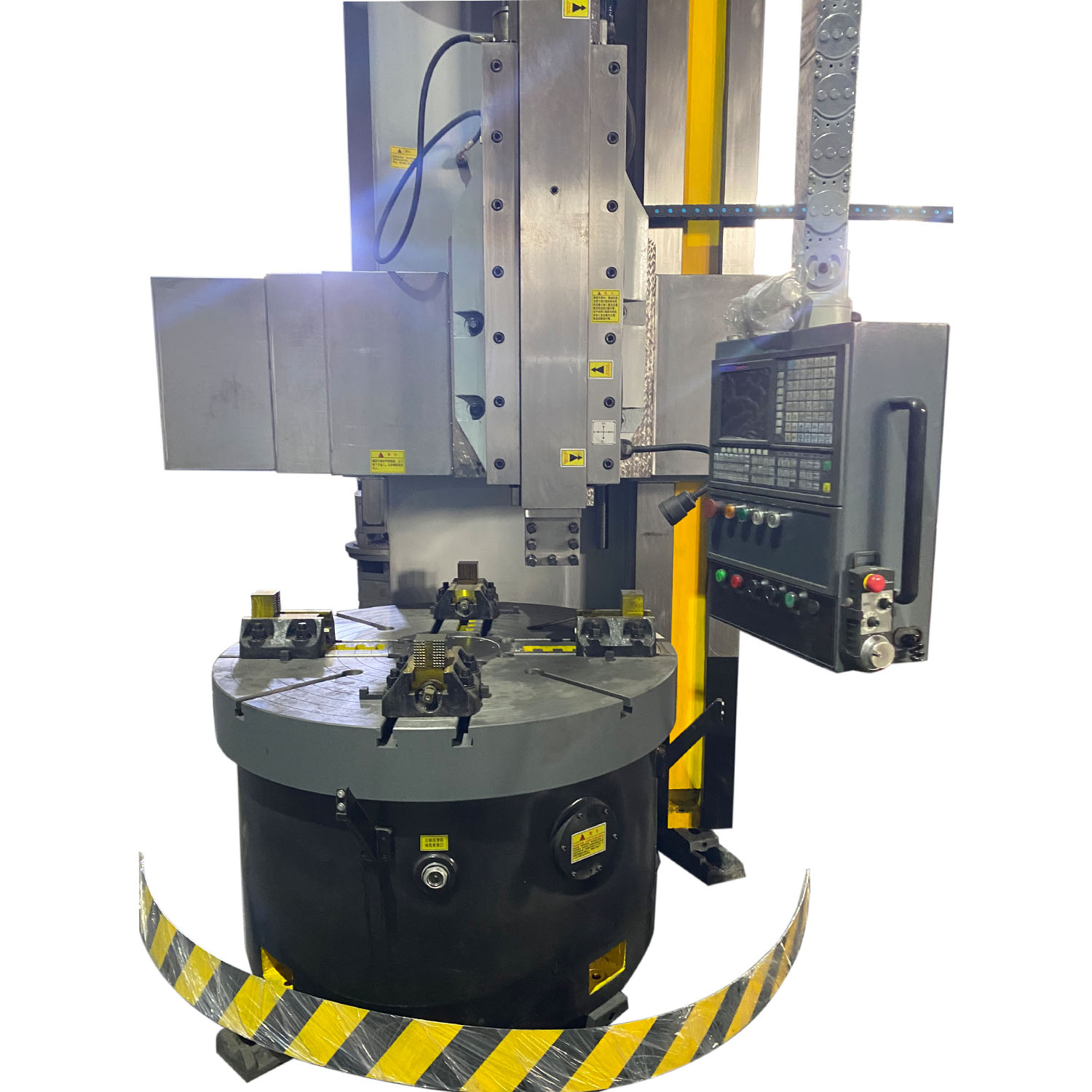

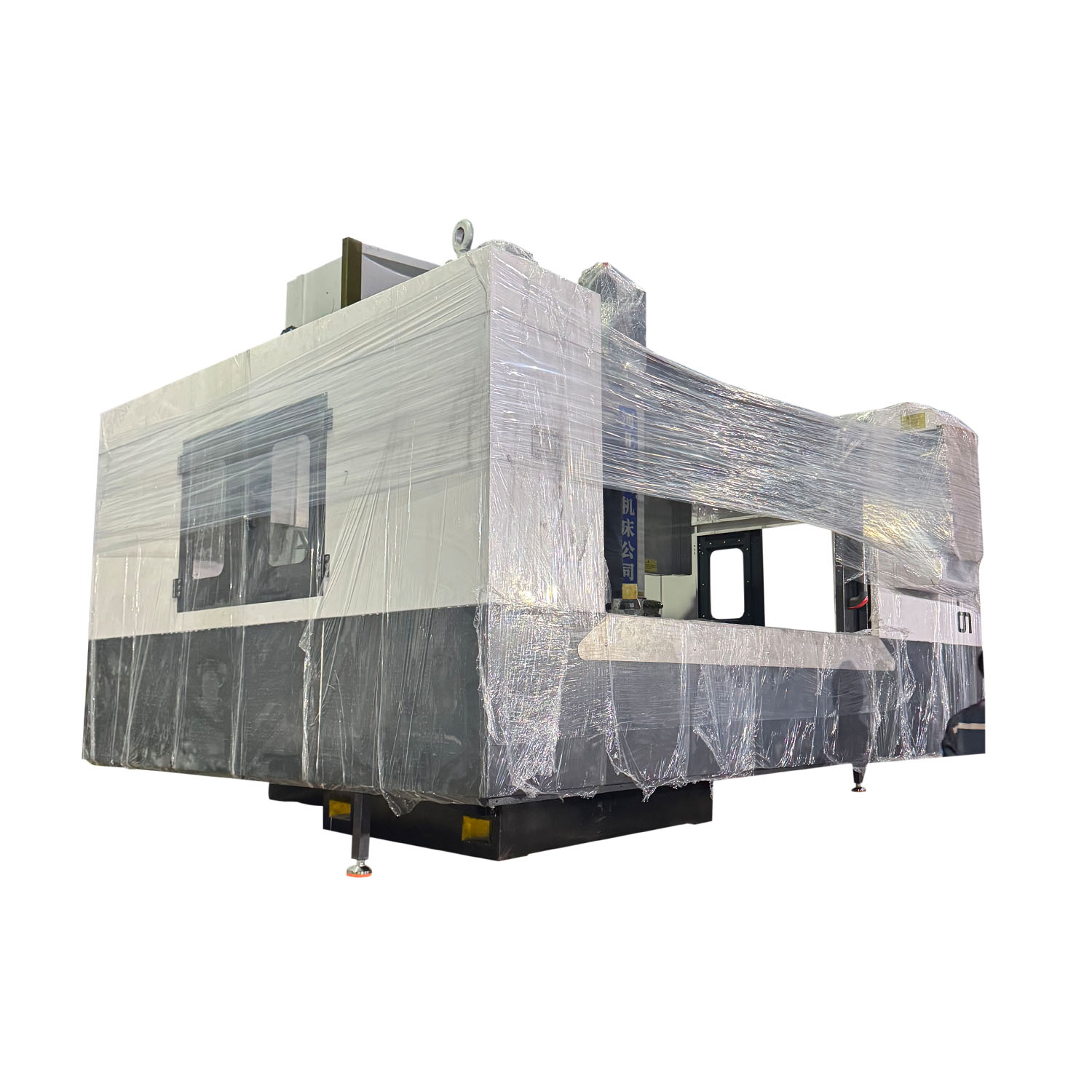

The CK5116 vertical lathe excels in large-part machining, featuring a 1400mm maximum turning diameter of the vertical tool rest and 1200mm workbench diameter. It handles workpieces up to 1200mm in height and 5T in weight, ideal for precision cutting of large rotating parts like flanges and heavy-duty gears.
Powered by a 30kW main motor and 2.2kW lifting motor, the CK5116 delivers robust performance. Its table speed adjusts between 6-160r/min, paired with a 0.1-2000mm/min tool rest feed range and 2500mm/min tool holder fast speed, ensuring efficient machining for diverse materials.
Equipped with a 30×40mm cutterbar and 30° vertical tool holder wrench angle limit, the CK5116 balances safety and versatility. The vertical tool rest offers 900mm horizontal and 750mm vertical travel, covering multi-directional cutting needs for complex workpieces.
With an 11T machine weight, the CK5116 boasts strong structural rigidity, effectively reducing machining vibration to maintain precision. Its 5T maximum workpiece weight capacity makes it suitable for heavy-duty machining in construction and mining equipment industries.
The CK5116 combines flexibility and efficiency: its wide table speed and feed rate ranges adapt to different cutting tasks, while the 1400mm workbench provides stable support for large workpieces. The fast tool holder movement further cuts auxiliary time, boosting overall productivity.
