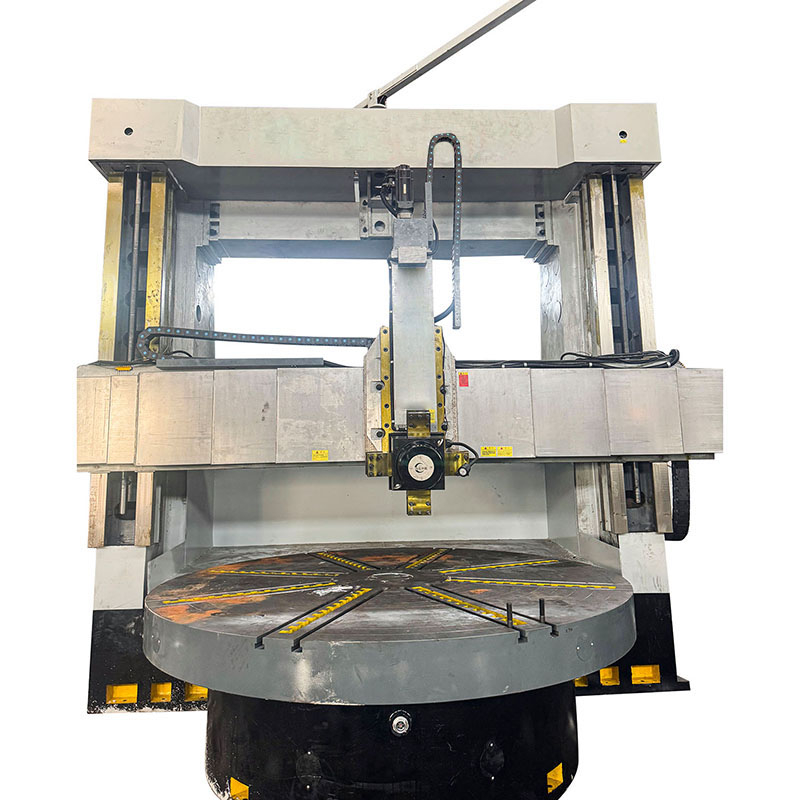

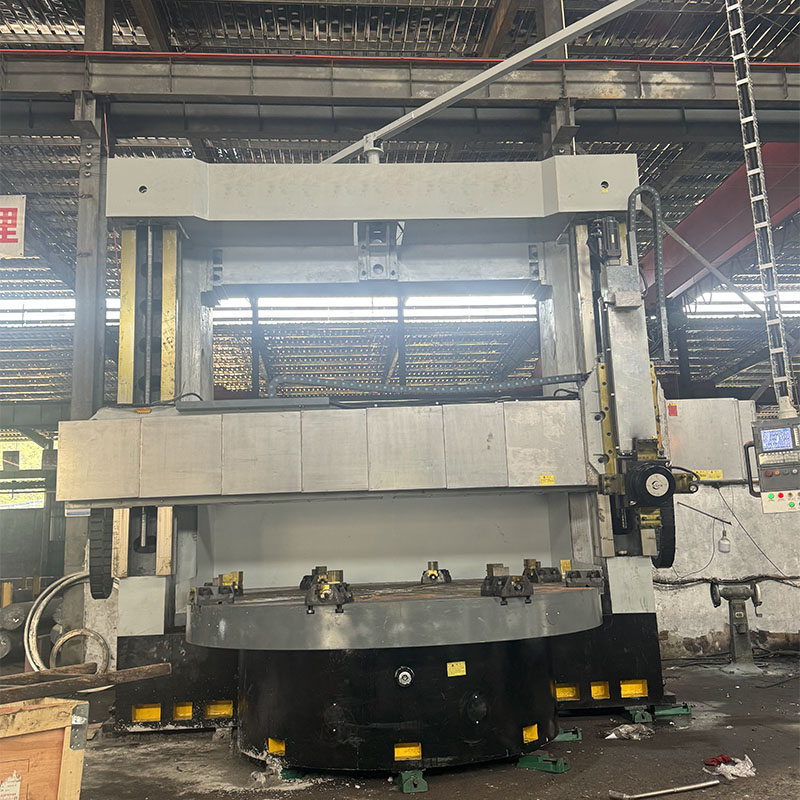

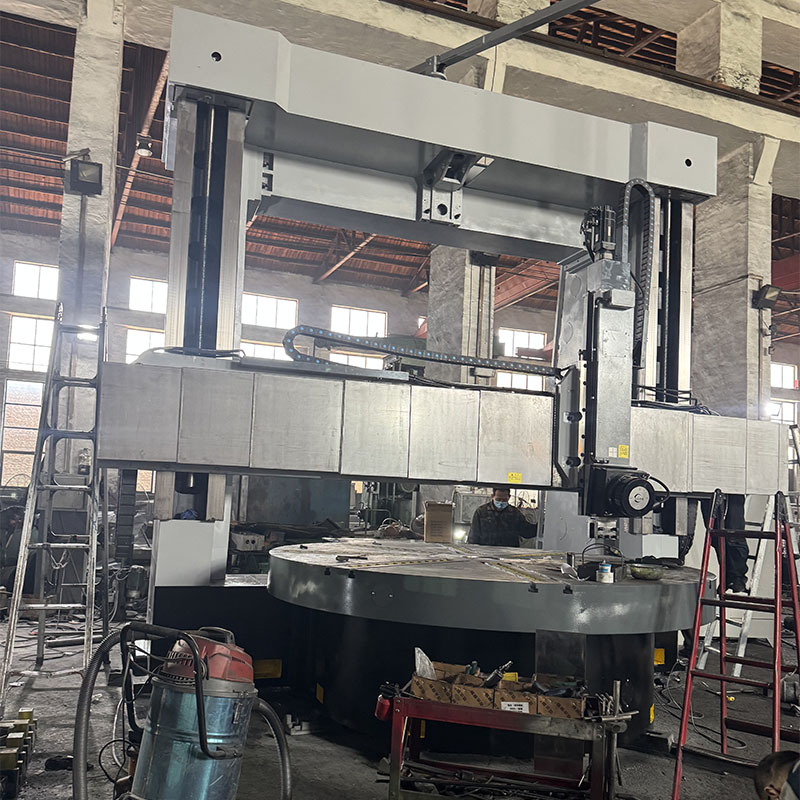

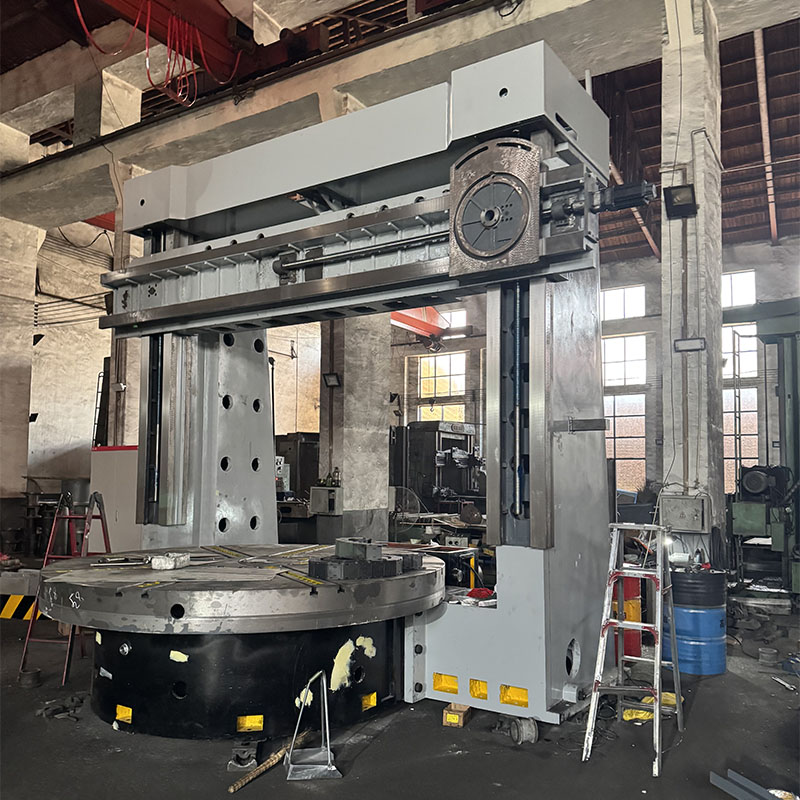

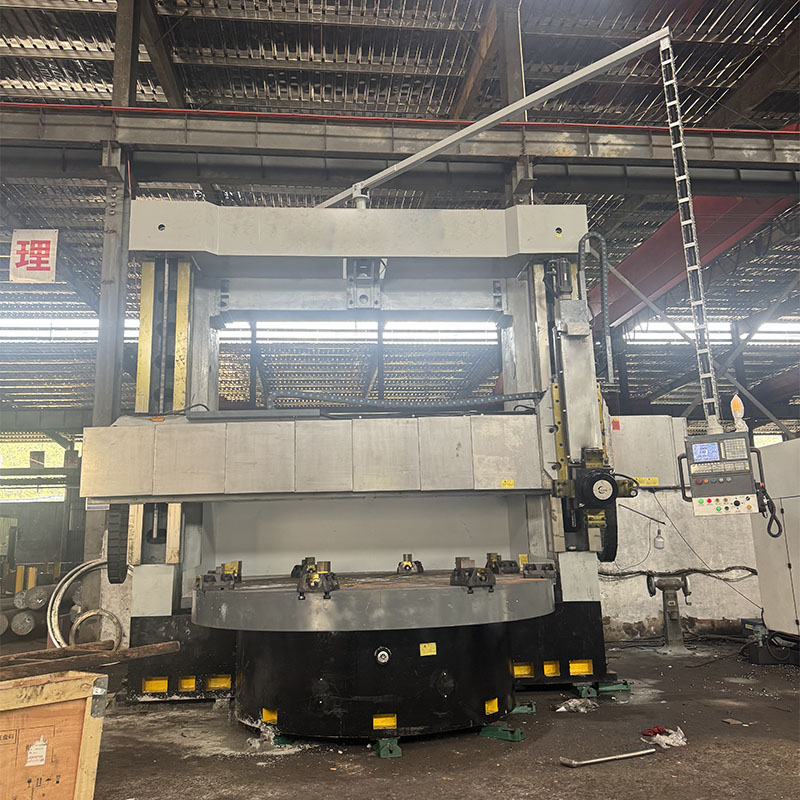

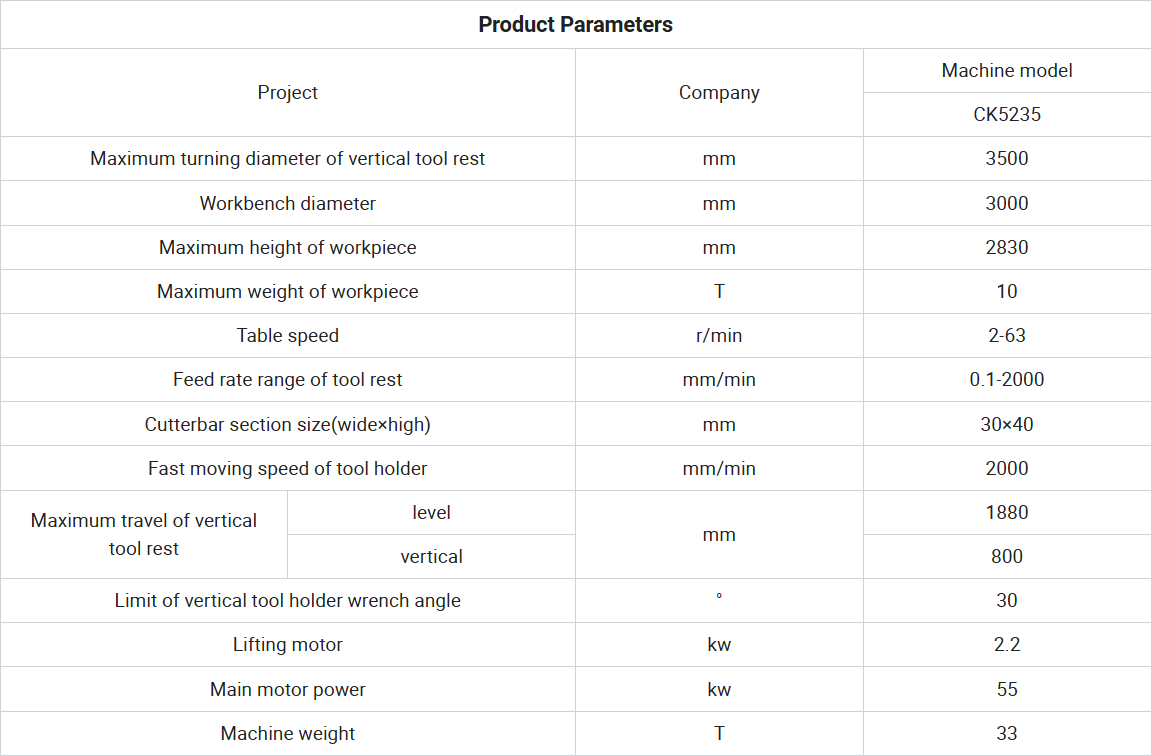

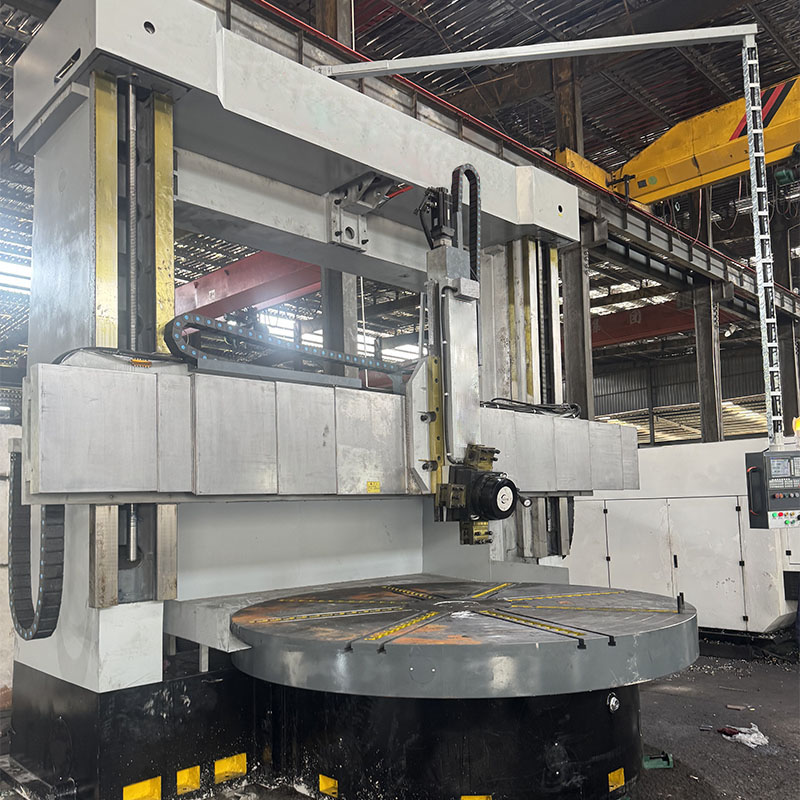

The CK5235 vertical lathe is a flagship model for extra-large workpiece machining, featuring an impressive 3500mm maximum turning diameter of the vertical tool rest and 3000mm workbench diameter. It can handle workpieces up to 2830mm in height and 10T in weight, making it a top choice for manufacturing oversized components like wind turbine main shafts, large pressure vessel flanges, and heavy-duty gear housings.
Powered by a 55kW high-torque main motor and 2.2kW stable lifting motor, the CK5235 delivers robust performance for heavy machining tasks. Its table speed adjusts precisely between 2-63r/min, paired with a 0.1-2000mm/min tool rest feed range and 2000mm/min tool holder fast moving speed, enabling both high-efficiency rough cutting of thick materials and precision finishing of complex surfaces.
Designed for wide-ranging machining needs, the CK5235 boasts 1880mm horizontal travel and 800mm vertical travel of the vertical tool rest, covering extensive processing areas to handle tall, bulky workpieces. It adopts a 30×40mm cutterbar compatible with various heavy-duty tools, while the 30° vertical tool holder wrench angle limit enhances operational safety during high-load operations.
With a 33T machine weight, the CK5235 features exceptional structural rigidity, effectively suppressing vibration even when processing 10T workpieces—ensuring consistent machining precision. Its 1600mm wide workbench provides stable support for large workpieces, making it a reliable solution for industries such as heavy machinery, power generation, and shipbuilding.
The CK5235 combines - scale processing capability with practical efficiency: its 2830mm maximum workpiece height caters to tall components, while the 55kW main motor ensures sustained power for prolonged machining. The tool holder's fast moving speed reduces non-cutting time, and the flexible speed/feed ranges adapt to diverse materials, from cast iron to high-strength alloy steel.
